Oil Sampling Kit for Hydraulic Oil, Lube Oil & Turbine Oil

GESERCO Oil Sampling Kit

Geserco Oil Sampling Kit-MalaysiaINTRODUCTION
Obtaining a representative and uncontamined sample of the fluid to be analyzed (lube oil, fuel oil, solvent) is the first key step of a proper used oil monitoring and machinery predictive maintenance program.

When the oil sample is not truly representative of the oil state, the test result may be biased and the test interpretation compromised.

The GESERCO sampling kits and solutions include everything you need to easily draw, preserve and document a representative and uncontamined sample.

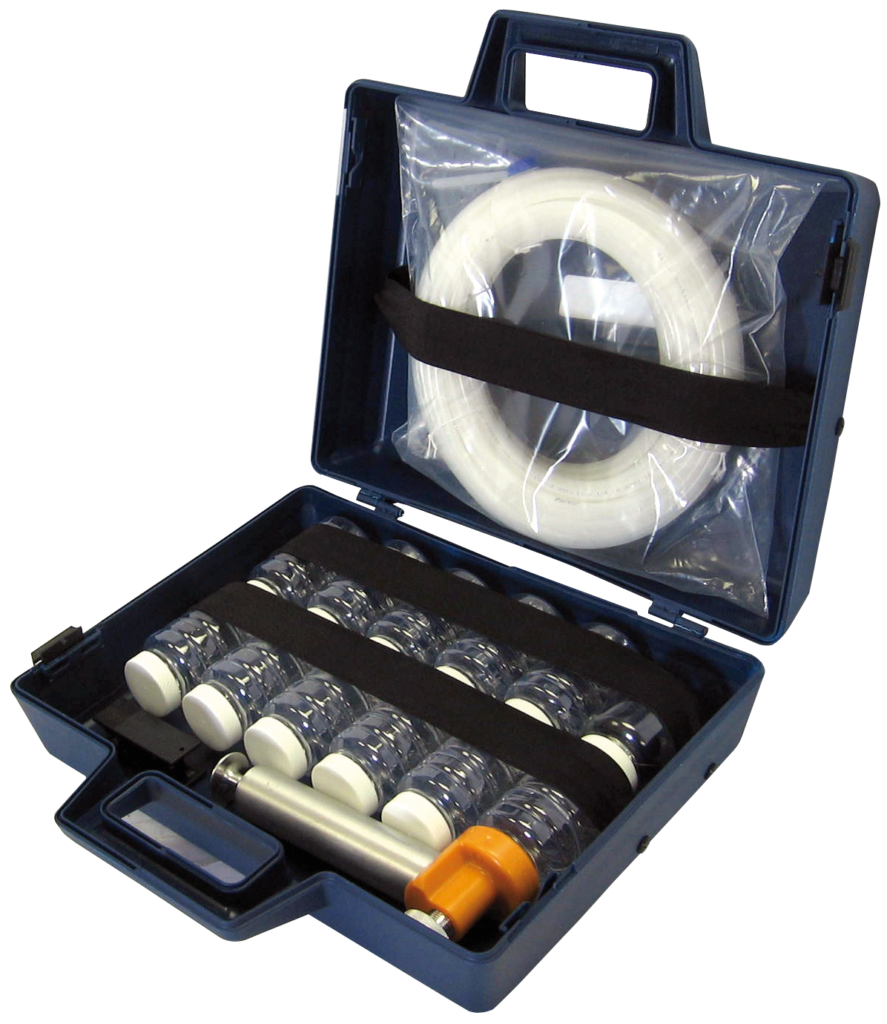

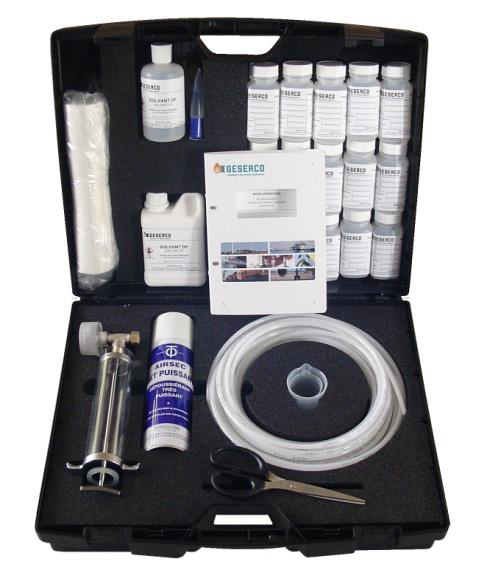

Housed in a rugged and lightweight case designed for field use, the GESERCO sampling kits contain flexible tubes, sampling pumps, sampling flasks, as well as any accessory required for labelling and documenting the samples and cleaning/drying equipment.

MODEL: PRVM9001
Rugged and lightweight kit including:

  • 50 ea. 150 ml PH35 HD sampling flasks
  • 1 roll of 25 m polyamide flexible tube
  • 1 ea. 200 cc PMMA sampling pump with non adhesive soft silicon seal
  • T connector with vacuum connector for connecting to the sampling flask
  • 1 cleaning kit (cleaning gas cylinder, solvent dispenser, beaker, cleaning cloth)
  • 1 sample documenting and labelling kit
  • Operating manual

MODEL: PRVM9002
Rugged and lightweight kit including:

  • 15 ea. 150 ml PH35 HD sampling flasks
  • 1 roll of 25 m polyamide flexible tube
  • 1 ea. 200 cc PMMA sampling pump with non adhesive soft silicon seal
  • 1 cleaning kit (cleaning gas cylinder, solvent dispenser, beaker, cleaning cloth)
  • 1 sample documenting and labelling kit
  • Operating manual

MODEL: PRVM9003
Rugged and lightweight kit including:

  • 24 ea. 240 ml HDPE sampling flasks
  • 1 roll of 25 m polyamide flexible tube
  • 1 ea. Aluminum vacuum sampling pump
  • 1 cleaning kit (cleaning gas cylinder, solvent dispenser, beaker, cleaning cloth)
  • 1 sample documenting and labelling kit
  • Operating manual

Other Options

  • Vacuum sampling kit with electric vacuum pump
  • High pressure sampling kit for MINIMESS 16×150 and 16×200 sampling ports including flow restrictor
  • Circuitry sampling kit according to NF E 48 650 standard

Other Sampling Equipment

  • 60, 100, 150 250, 500 and 1000 cc sample flasks
  • 50, 100, 200 and 300 cc PMMA sampling syringes
  • 2 to 300 cc PP/PE sampling syringes

Fluid Sampling Kit

oil sampling kit malaysia singapore bruneiINTRODUCTION
FMOSK-38XV-HD – Fluid Master Oil Sampling Kit is a small, hand-operated fluid sampling kit which has brought a new level of performance to fluid sampling.

Their durability, simplicity, versatility and ease of operation give them a distinct advantage over competitive models. Originally developed for oil sampling, Fluid Master Sampling Kit has proven to be useful in a variety of applications.

Companies involved in chemical, environmental, water, and hazardous material sampling, have all found the Fluid Master Sampling
Fluid Sampling Pumps malaysia singapore bruneiKit to be an invaluable tool. The sampling tube is inserted through the coupling device until the lower end extends below the top of the sample bottle. When the knurled knob is turned to tighten the seal, the vacuum will draw fluid directly into the bottle without coming in contact with the pump. This feature allows multiple samples to be taken without cleaning the pump between samples.

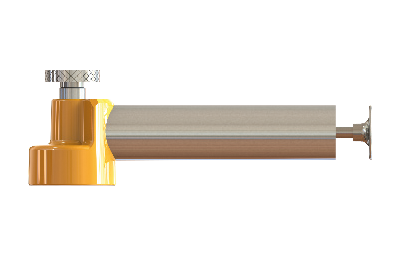

THE PUMP
The head of the pump made of lightweight, injection-moulded nylon and the hand equipped with all aluminium parts to make great looking, durable pumps. The sampling pump uses 38mm thread size bottles and with ¼” tubing.

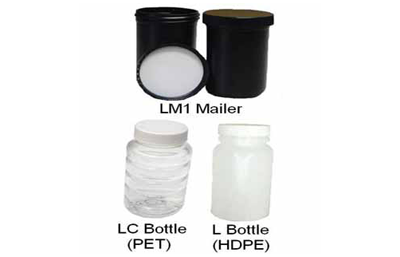

SAMPLING BOTTLES
Bottles in this Fluid Master Sampling Kit are size of 38mm. The bottles are designed to suit the pump and guaranteed not to collapse. This 38mm bottles are Clear PET Bottles of 120ml.

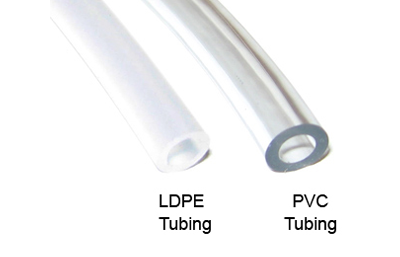

TUBING
Tubing for Fluid Master is a ¼” or 6.35mm outside diameter, with wall thickness of 0.04.



 FLUID MASTER SAMPLING KIT CONTENT Items Quantity Items Quantity
38mm Sampling Pump 1 unit Safety Hand Glove 1 unit
Sampling Pump Stand 1 unit Safety Glass 1 unit
120ml PET Sampling Bottles 10 units Safety Nose Mask 3 pcs
¼” Sampling Tube 10 meters Oil / Chemical Absorbent Pad 3 pcs
Tube Cutter 1 unit Sampling Bottles’ Seal Plastic 10 pcs
Paint Marker Pen 1 unit
