Doro Cutters - Reed Cutters for Mounting on Boats
VJ Engineering is the authorized agent of Dorotea Mekaniska AB, Sweden for Malaysia, Singapore & Brunei
The boat mounted Doro cutters are available in a range of sizes and capacities, including everything from a small electrically operated model to a hydraulic cutter with a working width of up to four metres. The cutting depths depend on how high the rails on the boat are, so the working depths given are only indicative.
Doro Cutter Wasse
Doro cutter Wasse is the most popular Doro cutter. It runs on a petrol engine, has a cutting width of one metre and a cutting depth of 0.5 metre.
Doroklippen Wasse is the smallest motor engine reed cutter. Wasse is suitable when moving between different water bodies, and for maintaining small cutting areas. Then cutting depth, knife action in and out and engine start, etc, are all controlled from the driver’s seat. The light construction facilitates transport and mounting. A stone release system protects the knife from damage by solid objects.
Technical data Doro Cutter Wasse:
Working width 1 m
Cutting depth 30 cm
Engine B&S 3,5 hp 4-stroke
Driving Fan belt 4 step
Weight 45 kg
Max. boat width 180 cm
Item no. 93-WASSE
Doro Cutter Klippo
Doro cutter Klippo is also equipped with a petrol engine, but has a cutting depth of 1.5 metres.
Doro cutter is our mid sized machine. Klippo is completely operable from the driver’s seat, including cutting depth and the action of the knives. The knife can also be placed diagonally for cutting in carpet vegetation and close to land. Klippo is equipped with a stone release system and has an adjustable frame for different boat widths. The plastic buckets serve as ballast.
The frame is secured to the rail with clamp hooks.
Accessories:
Undercarriage which facilitates mounting, transport and storage.
Technical Data Doro Cutter Klippo:
Working width 1,5 m
Cutting depth 50 cm
Engine B&S 3,5 hk 4 stroke
Driving Fan belt 4 step
Weight 60 kg
Max boat width 180 cm
Item. no. 88-KLIPPO

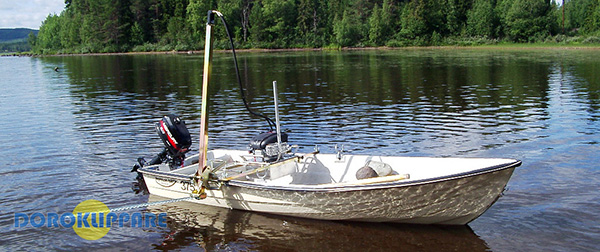

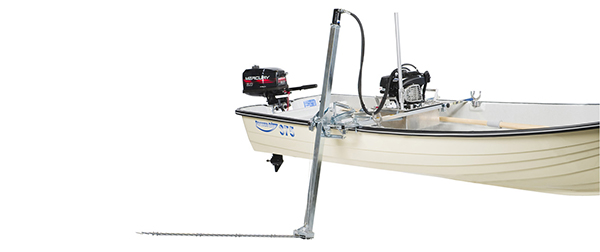

Doro Cutter Hymo
Doro cutter Hymo is a hydraulic reed cutter with a cutting width of 1.5 metre and an extended cutting depth of 1.1 metre.
Hymo is our deep cutting machine. We use our hydraulic unit Hyddo 200 as the driving unit. Thanks to the hydraulic driving mechanism, the machine is very stable to operate. Doro cutter Hymo is delivered complete with the hydraulic unit. A stone release protects the knife from being damaged by solid objects.
Doro cutter Hymo Item no. 87-HYMO
Doro cutter Hymo extended Item no. 87-1900H
Technical data Doro cutter Hymo:
Working width 1,5 m
Cutting depth 1,1 m
Engine Hydraulic unit Hyddo 200,B&S 6 hp, 4 stroke
Driving Hydraulic engine
Weight 75 kg
Max boat width 180 cm
Doro Cutter 3070/3071
Doro cutter 3070 is the largest boat mounted reed cutter. The cutter can be equipped with knives to yield working widths from 2.2 metres to four metres. The Doro cutter 3070 is front mounted and hydraulically operated.
Dorocutter Mod 3070 is our largest reed cutter for motor boats. The hydraulical driving gives a reliable drift. The machine is suitable for the larger jobs. An engine on the high side of 6 hp is delivering power to the cutting unit.
The Dorocutter Mod 3070 is delivered complete with frames, winch, hydraulic unit (Hyddo 200) and cutting unit with a working widht of 3 metres. The knifes are changeable with alternative workingwidths, 2 and 4 metres. The rock releaser is springing. The construction allows the knife to move sideway and backward. The Dorocutter Mod 3071 has the same specifications except for extended working depth.
Technical Data 3070/3071:
Working width 3 m
Cutting depth 0,8 m
Engine Hydraulic unit Hyddo 200,B&S 6 hk, 4-stroke
Driving Hydraulic unit
Weight 110 kg incl. hydraulic unit
3070 Item. no 95-3070H
3071 Item. no 95-3071H
Knife Kits:
Working width 2 m Item. no 95-90020
Working width 4 m Item. no 95-90040
Doro Knife Handy
Doro knife Handy is a hand held tool for reed cutting near jetties and on smaller surfaces.
User friendly tool with cutting blade and rake in one tool. Perfect for clearing small areas, eg. around jetties. The knife has a telescopic, grip friendly handle. The knives are exchangeable and the tool has an aluminium handle and electrically galvanised rake or knife.
Technical data Handy:
Technical data – Doro knife Handy
Width: 40 cm
Handle length: 120-200 cm
Weight: 1,5 kg
Item. no. 97-HANDY
Rakes
Reed Rake
Using the front mounted reed rake, the Doro cutters can be used efficiently. Reeds that can be a problem for the propeller are steered away by using the rake, which can be used with the Hymo, Klippo, Wasse and Elis machines.
Working width: 2.4m
Weight: 14kg
Item no. 96-VASSRÄFSA
Reed Rake for Doro cutter 3070
This front mounted rake is suitable for use with the Doro cutter 3070. The reed cutter supplements the Doro cutter, and the cutting is more efficient when the rake is used to gather the cut reeds.
Working width 3.0m
Weight: 17kg
Item no. 96-12000
Wheel Rack
The wheel rack facilitates assembly, transport and storage of the Doro cutters.
Wheel rack for Doro cutter Wasse:
Weight: 5kg
Item no. 93-HJUL
Wheel rack for Doro cutter Klippo, Hymo:
Weight: 6kg
Item no. 99-HJUL
