Truxor Tools & Accessories

VJ Engineering is the authorized agent of Dorotea Mekaniska AB, Sweden for Malaysia, Singapore & Brunei



Reed Cutting

  • Truxor Malaysia Singapore Brunei
  • Truxor Malaysia Singapore Brunei

Dorotea Mekaniska offers five different cutter units for the Truxor machines - Doro cutter 3090/3091, Doro cutter ESM 1700, Doro cutter ESM 2100, Doro Cutter ESM 2200, Doro Cutter ESM 1900, and Doro cutter ESM 2150.

The Doro cutter 3090 is recommended for water depth of more than 30 cm. For cutting operations on land use the ESM cutters. The four ESM cutters are equipped with double-action Busati knife systems which has sufficient capacity to handle heavy vegetation.



Collecting Rakes

Collection – just as important as cutting. Reed rake used for the collection and transportation of plants after reed cutting.

Dorotea Mekaniska offers four types of Rakes - Reed Rake Standard, High-Tip Rake, Lifting Rake and Rake with Sprung Pins. Check out below for more details on each type of Rakes.

The Cut water plants if left in the water can act as fertiliser. This is why we recommend that all cut materials be collected and removed. Harvesting and removing water plants helps prevent eutrophication.



Reed Rake Standard

Truxor Reed Rake

Used for the collection and transportation of plants after reed cutting. It has foldable side sections. The rake can be supplemented with sieve plates for collection of waste, algae and absorbents (oil spill clean-up).

Working width: 2 or 3.5 m.
Weight: 60 kg
Item no. 94-22500



High-Tip Rake

Truxor High-Tip Rake

This rake has a higher tip, which facilitates the loading of trailers or barges. The rake is made of perforated plating which allows it to collect smaller particles such as waste, algae and absorbents (oil spill clean-up).

Working width: 2,13 m
Weight: 70 kg
Max. lifting height in water: 1,3 m
Max. lifting height on land: 1,7 m.
Item no. 94-47700



Lifting Rake

Truxor Lifting Rake

This rake is the perfect choice when cleaning the shore and lifting heavy objects. The solid forks can lift stones, trees and plants with roots found along the shoreline and at the bottom of the lake. The forks are adjustable making it possible to reduce the working width.

Working width: 2 m
Weight: 41 kg
Item no. 94-68000



Rake with Sprung Pins

Truxor Rake with Sprung Pins

Sprung pins can be moved in the water when the shoreline is uneven. The floating material can then be collected with the help of the standard rake.

Working width: 2,5 m
Weight: 40 kg
Item no. 94-47600



Oil Spill Cleaning

Sala Roll Pump

  • Truxor Oil Spill Cleaning Sala Pump Malaysia Singapore Brunei
  • Truxor Oil Spill Cleaning Sala Pump Malaysia Singapore Brunei
  • Truxor Oil Spill Cleaning Sala Pump Malaysia Singapore Brunei
  • Truxor Oil Spill Cleaning Sala Pump Malaysia Singapore Brunei


The Sala Roll Pump is suitable for decontamination of thick-flowing and polluted matter in places that are difficult to reach. The suction tubing can be placed in the Doro skimmer or used manually.

The Sala Roll Pump can either suck or pump just by changing the rotation of the pump. This is useful for example, when the Doro tank is to be emptied. The strong vacuum ensures excellent suction capacity. The high pressure makes it possible to transport the matter over long distance.

The Sala Roll Pump can be used alone with a suction nozzle or in combination with Doro Skimmer DS 800.



Doro Oil Spill Skimmer DS 800

  • Oil Spill Skimmer Malaysia Singapore Brunei
  • Oil Spill Skimmer Malaysia Singapore Brunei
  • Oil Spill Skimmer Malaysia Singapore Brunei




The Doro Skimmer DS 800 is a mobile combi skimmer that works in shallow waters from approx. 2 cm. When an oil spill has been contained with oil booms, the booms can be mounted to the Doro skimmer’s bracket. As a result, the machine does not have to drive in the oil spill. The end covers of the Doro skimmer can be removed, which increases the capacity when the oil is thicker.

Doro Skimmer DS 800 Combined with Sala Roll Pump.
Capacity: 20 m3/h (thick oil)
Weight: 52 kg
Item no. 79-5000



Doro Spreader

  • Oil Spill Spreader Malaysia Singapore Brunei


With the Doro Spreader DM 1000 spreading oil-absorbing materials is easy. The oil absorbents limit the damage caused by oil that is spilled into the water. The rotating spreader head, controlled from the operator’s seat, is used to adjust the amount of absorbent materials to be delivered. The Doro Spreader DM 1000 has a central divider which makes it possible to use half the working depth. The Doro Spreader DM 1000 can be used with most types of absorbents.

Weight: 66 kg
Load volume: 1000 l
Max. load weight:180 kg
L: 900 mm
W: 2000 mm
H: 800 mm
Item no. 79-15700



Doro Tank

  • Tank for Oil Spill Malaysia Singapore Brunei
  • Tank for Oil Spill Malaysia Singapore Brunei


The conditions for cleaning up oil spills vary depending on the environment. During the final phase of the work there are usually small areas of oil where it is practical to collect the oil in a mobile tank. The Doro tank is mounted between the pontoons and is supplied with couplings that can be easily mounted to the Sala Roll Pump. When using the Sala Roll Pump to empty the tank it pumps out the oil via the suction tube. The Doro tank is used in combination with the Sala Roll Pump and Doro Skimmer 800.

Volume: 200 litre
Weight: 24 kg
Item no. 79-6000



Dredging

Dredge pump Doro pump V3

  • Truxor Oil Spill Cleaning Sala Pump Malaysia Singapore Brunei
  • Truxor Oil Spill Cleaning Sala Pump Malaysia Singapore Brunei


The Doro Pump V3 when mounted on a Doro Digger offers extensive control of the dredging accessories. The system has a rotating head and knives mounted on the intake, ensuring an even feed of material into the Doro pump. The wings of the intake system feeds the sediment and minimises the dirtying of the water with the sediment.

Doro pump V3 standard set:
Delivered with hydraulically operated drill feed and 8 m spiral tubing including couplings, 25 m flat tubing Ø 102 mm incl. quick couplings and brackets for floaters, 10 floaters, 5 m flat tubing with quick coupling and end nozzle, 1 set of brackets for the dredging hose, outrigger pontoon extensions.



Excavating

Doro Digger

  • Excavating Doro Digger Malaysia Singapore Brunei
  • Excavating Doro Digger Malaysia Singapore Brunei


The Doro Digger is an excavation aggregate and combined mounting system for other tools. The digging arm is made of high-tensile steel and has built-in brackets for attaching dredge hoses and additional hydraulic tubing.

The Doro Digger is designed to maximize the lifting height, digging depth and reach. The digging aggregate has a swing system equipped with hydraulic cylinders that provide solid flywheel capacity. Doro Digger is equipped with semi-automatic quick bracket DM X3 for fast tool change.

Examples of Doro Digger accessories are excavation buckets, dredge pumps, flail mulchers and cutting knives.



Miller

Doro Miller

  • Doro Miller Malaysia Singapore Brunei
  • Doro Miller Malaysia Singapore Brunei
  • Doro Miller Malaysia Singapore Brunei


The Doro miller is used for restoring wetlands, shorelines and floors. The miller is available in different working widths. The miller heads are replaceable and can be dismounted from the drive unit. The drive unit is mounted on the lifting arm. It is recommended only in wetlands with organic materials. The miller heads are not included.

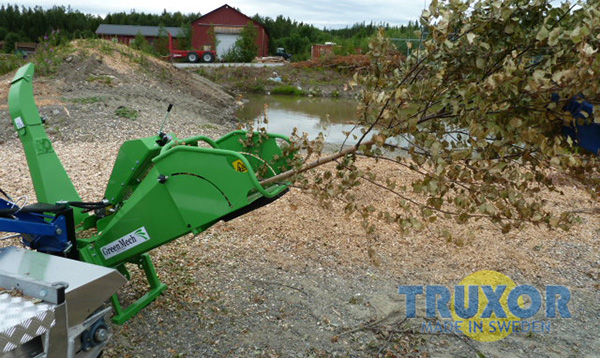

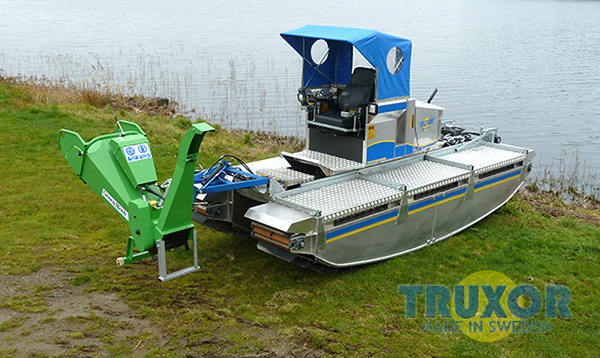

Wood Chipper

  • Wood Chipper Malaysia Singapore Brunei
  • Wood Chipper Malaysia Singapore Brunei


The wood chipper rotor has two transversal knives. The rotor feeds the wood and air blows the material out via the adjustable exhaust. The wood chipper is hydraulically operated and is delivered with an adjustable bracket which facilitates the feeding process when working on slopes. The tool is an excellent supplement when clearing close to wetlands, lakes and waterways.

Weight: 198 kg
Capacity: 75 mm
Feed size: 500×400 mm
Item no. 94-104300



Grip Bucket & Grip

  • Grip Bucket Malaysia Singapore Brunei
  • Grip Bucket Malaysia Singapore Brunei
  • Grip Bucket Malaysia Singapore Brunei


The grip bucket and the grip are for lifting plants and sediments from the bottom of a lake or along shore lines. The tools must be combined with a telescopic arm or a bracket. With the telescopic arm installed, the tools have a working depth of 1.7 m.

If the work involves mainly shorelines and shallow water, the grip and grip bucket can be attached to the lift bracket. The working depth will then be approx. 0.9 m. The lift bracket is lighter in comparison to tools mounted on the telescopic arm, which provides greater lifting power.

Working depth with telescopic arm 1.7 m.
Working depth with DM bracket approx. 0,9 m.
Weight, grip bucket: 76 kg
Weight, grip: 40 kg
Weight, telescopic arm: 33 kg
Weight, lift bracket: 9 kg
Item no. grip bucket: 94-58100
Item no. grip: 94-59500
Item no. telescopic arm: 94-58400
Item no. lift bracket: 94-60600



Pile Driver

  • Pile Driver Malaysia Singapore Brunei
  • Pile Driver Malaysia Singapore Brunei
  • Pile Driver Malaysia Singapore Brunei


Pile Driver DM 350 is a mast with a winch system for lifting and mounting plastic, wooden and metal piles and poles. It is equipped with a Hycon hydraulic hammer which is used in combination with the Pile Driver DM 350 and generates very powerful vibrations, resulting in effective piling in water. The Pile Driver DM 350 is mounted onto the frame bracket of the lifting arm. The X + Y movement is controlled from the operator’s seat. The hydraulic hammer is attached to the winch using the bracket for piles or poles. Delivered complete with a winch. Hycon hydraulic hammer is not included.



Hydraulic Hammer

Hycon Hydraulic Hammer

  • Hydraulic Hammer Malaysia Singapore Brunei


For piling of poles and plastic piles. The hydraulic hammer can be used with or without Pile Driver DM 350. Delivered with hydraulic hoses and quick couplings. The brackets for plastic piles and poles are ordered separately.

Weight: 34 kg.
Item no.71-14500



Tilt Bracket

  • Tilt Bracket Malaysia Singapore Brunei
  • Tilt Bracket Malaysia Singapore Brunei


The hydraulic tilt bracket is a Truxor DM 5000/5045 accessory. The bracket mounted on the lifting arm facilitates the work and increases the precision of the tool when working sideways.

The bracket makes it possible to angle the cutter and rake, thus cutting and collecting plants in places that are difficult to access. Can be adjusted by up to ±30 degrees.

Tools that can be combined with the tilt bracket: Doro cutter 3090 /3091, Doro cutter ESM 2100,
Doro cutter ESM 2200, Reed rake, standard, Doro miller and Doro skimmer.

Weight: 16 kg
Item no. 94-101800K

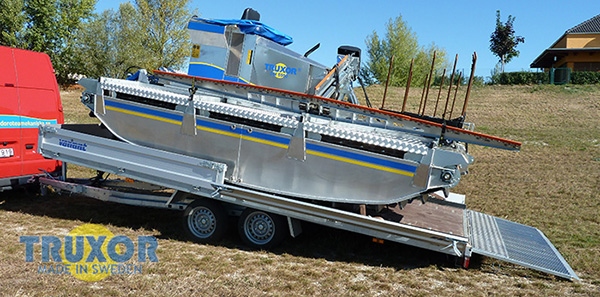

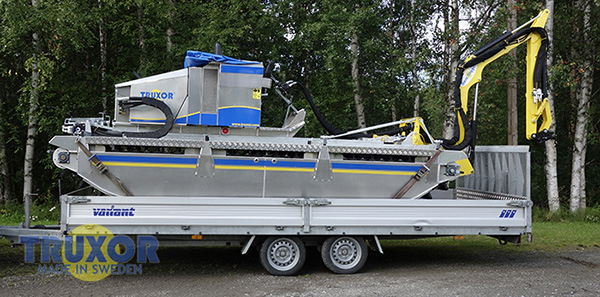

Trailer

Trailer Variant 2700U5

  • Trailer Variant Malaysia Singapore Brunei
  • Trailer Variant Malaysia Singapore Brunei


The trailer is a trailer specially adapted for transporting Truxor. The Trailer is delivered with straps, collapsible sides of aluminium, hydraulic tipper, foldable rear ramp with gas springs that facilitate the raising and lowering of the ramp. Guide rails facilitate the loading and unloading of the machine.

Trailer technical specifications:
Loading platform dimensions: 5,2×2,1 m
Total length: 6,65 m
Loading platform height: 60 cm
Service weight: 880 kg
Total weight: 2700 kg
Load capacity: 1820 kg
Wheels: 195/50-13
Item no. 75-5200



Accessories

Air Transport

  • Air Transport Malaysia Singapore Brunei


If necessary, additional tools or accessories can be loaded on the machine with the help of the transport platform which is mounted on the transport bracket of the reed rake. Made of aluminium.

Weight: 4 kg.
Max load: 60 kg.
Size (LxWxH): 800x310x300 mm
Volume: 70 l.
Item no. 94-104500



Chain Gear

  • Chain Gear Malaysia Singapore Brunei


Machines used in wetlands become more manoeuvrable if the gear speed is higher. The Chain gear is recommended only when the machine is used in wetlands and in combination with the tools we recommend. With normal use in water, on land and in wetlands, it does not require higher gear speed. Drive chains and chain sprockets (bigger) are included.

Weight: 10 kg.
Item no. 94-104400



Rear DM Bracket

  • Rear DM bracket Malaysia Singapore Brunei


The Tiltable bracket is for fast tool mounting. Used for the propeller and rake with sprung pins. Hydraulic outlet included.

Weight: 28 kg.
Item no. 94-66000



Propeller Operation

  • Propeller operation Malaysia Singapore Brunei


Increases the speed in water. Recommended for transport and in combination with certain tools.

The propeller should not be used together with the reed cutter or Doro Digger. The engine speed of the propeller is controlled from the operator’s seat. The propeller is controlled using caterpillar tracks. Delivered with a stone release system. A rear DM bracket must be installed (not included).

Speed in water: max. 7.8 km Propeller diameter 330 mm.
Weight: 25 kg Item no. 91-104200
