EFINOR – MultiCleaner 105 Multi Cleaner Vessel | Mobula 8 Sea Cleaners | Waste Collector Vessel | Marine Litter Vessel for Rivers, Calm Water and Sea
VJ Engineering is the Authorized Agent of EFINOR for the country of Malaysia, Singapore & Brunei.
This version of the MultiCleaner 105 has been specially equipped for the recovery of Water Hyacinths and Sargasses in addition to its primary function of recovery floating waste.
Effective Depollution
Collection of floating sargasses at sea, collection of hyacinths
Essential Services
Lifting, firefighting.
TECHNICAL SPECIFICATION
CONSTRUCTION
- Material: Aluminium
- Ship Certification: Bureau Veritas
- Regulation: Division 222
- Diesel Hydraulic Power Unit: 230 HP
- Hydraulic Propeller: 2 x 75 HP Diesel
- Max Speed: 8 Knots
- Navigation Category: 3th
DIMENSION
- Length of Hull: 10m
- Beam of Hull: 5m
- Light Weight: 10 tons
- Draft (Average): 0.7m
- Crew: 2
CLEANING CAPACITY
- Suction Capacity: 6000 m3/h
- Liquid Storage Tank: 5000L
- Payload: 7000 kg
- Cleaning Speed: 0 to 3 knots
- Cleaning Width: 4.70m
- Motor-pump: 45 m3/h
EQUIPMENT

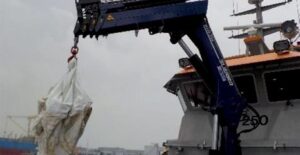

- Hydraulic Crane: Option
- Convoyor Belt: Option
Multi Purpose Vessel
Port service, towing, firefighting, docks cleaning, load and personnel transport.
Reduced carbon footprint
Eco-conception: Aluminum manufacturing, (98% recycled aluminum), strength and durability.
Patented Depollution Technology
Dual flow technology, allows for the clear water evacuation and the storage of waters polluted by hydrocarbons/ oils.
All Kinds of Pollution
Collection of solid waste (including plastics), collection of liquid waste (hydrocarbons, sewage release, black & gray water in option), jellyfish & plants (weedcutter option).
Easy to deploy
Quick deployment: Less than 1 minute.
Opening front door – Suction Macro wastes basket.
Crew’s safety: Hydraulic control from the cabin by 1 person.
Integrated Cleaning System
Liquid waste recovery: Internal floating storage. Incomparable storage capacity. No variation for trim and draft. No impact on stability.
Solid waste recovery: Automatic filtration and recovery on the deck.
Suction in movement: Permanent suction moving forward.
