EFINOR – MultiCleaner 117 Multi Cleaner Vessel | Mobula 8 Sea Cleaners | Waste Collector Vessel | Marine Litter Vessel for Rivers, Calm Water and Sea
VJ Engineering is the Authorized Agent of EFINOR for the country of Malaysia, Singapore & Brunei.
The MultiCleaner 117 is a multipurpose and clean-up vessel with a unique and innovative technology for collecting solid and liquid floating waste including hydrocarbons.
Effective Depollution
Plastic and others floating waste, hydrocarbons, jellyfish, sewage releases, plants.
Essential Services
Towing, transport, hydrocarbons, crane capacities, firefighting, floating waste.
TECHNICAL SPECIFICATION
CONSTRUCTION
- Material: Aluminium
- Ship Certification: Bureau Veritas
- Regulation: Division 222
- Engine: 2 x 160 HP diesel
- Max Speed: 10 knots
- Navigation Category: 2nd
- Lifting by 4 lifting padeyes
DIMENSION
- Length of Hull:12.20m
- Beam of Hull: 4.5m
- Light Weight: 17 tons
- Draft (Average): 1.4m
- Crew: Min 2
CLEANING CAPACITY
- Suction Capacity: 5000 m3/h
- Liquid Storage Tank: 5000L
- Payload: 2.5 tons
- Cleaning Speed: 0.5 to 4 knots
- Cleaning Width: 4.70m
- Motor-pump: 45 m3/h
EQUIPMENT
- Hydraulic Crane: 3 T.m
- Bollard Pull: 2.5 tons
- Cooling for Engines: Keelcooling (option)
- Main Electrohydraulic Plant: 140 HP
- Suction Flow Turbine: 75 HP
Multi Purpose Vessel
Port service, crane capacity, towing, firefighting, docks/jetty cleaning, mooring, load and personnel transport, black and grey water recovery.
Reduced carbon footprint
Eco-conception: Aluminum manufacturing, (98% recycled aluminum), strength and durability.
Patented Depollution Technology
Dual flow technology, allows for the clear water evacuation and the storage of waters polluted by hydrocarbons/ oils.
All Kinds of Pollution
Collection of solid waste (including plastics), collection of liquid waste (hydrocarbons, sewage release, black & gray water in option), jellyfish & plants (weedcutter option).
Easy to deploy
Quick deployment: Less than 1 minute.

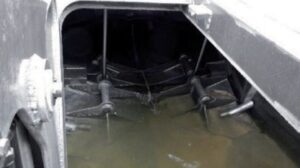

Opening front door – Suction Macro wastes basket.
Crew’s safety: Hydraulic control from the cabin by 1 person.
Low cost and efficiency: Proven and unmatched performance.

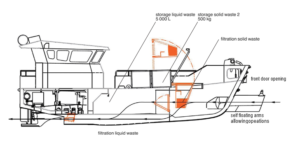

Integrated Cleaning System
Liquid waste recovery: Internal floating storage. Incomparable storage capacity. No variation for trim and draft. No impact on stability.

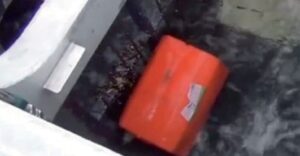

Solid waste recovery: Automatic filtration and recovery on the deck.
Suction in movement: Permanent suction moving forward.
