EFINOR – SpillCleaner 250
VJ Engineering is the Authorized Agent of EFINOR for the country of Malaysia, Singapore & Brunei.
Able to intervene in rough sea – The SpillCleaner 250 is a multipurpose and clean-up vessel with a unique and innovative technology for collecting solid and liquid floating waste including hydrocarbons. It is fully automated, all controls for pollution containment are carried out from the wheelhouse. The ship is an offshore vessel capable of staying at sea for several weeks in multi-mission.
Effective Depollution
Hydrocarbons and all types of floating waste.
Multi Vessel
Offshore surveillance, maritime services, crane capacities, towing, firefighting, mooring, load and personnel transport.
TECHNICAL SPECIFICATION
CONSTRUCTION
- Material: Aluminium
- Ship Certification: Bureau Veritas
- Regulation: Oil Recovery Ship, Option – MACH/ HULL, Unrestricted Navigation
- Regulation: Division 222
- Engine: 2 x 750 HP diesel
- Max Speed: 12 knots
- Navigation Category: 1st
- Range max/ cruise: 950/ 2500 miles
DIMENSION
- Length of Hull: 25m
- Beam of Hull: 7m
- Light Weight: 86 tons
- Draft (Average): 3m
- Crew: 4 to 8
CLEANING CAPACITY
- Suction Capacity: 13000 m3/h
- Liquid Storage Tank: 120000 L
- Payload on Deck: 34 000 kg
- Cleaning Speed: 4 knots
- Cleaning Width: 6.6 m
- Hydrocarbon Transfer Pump: 120 m3/h
EQUIPMENT
- Hydraulic Crane: 30 t.m + 10 t.m
- Bollard Pull: 8 tons
- Cooling for Engines: Keelcooling (option)
- Main Electrohydraulic Plant: 425 HP
- Suction Flow Turbine: 300 HP
- Electric Generator: 50 + 50 kVA
- Firefighting Pump: 200 m3/h
- Maneuver Assist Cameras
Multi Purpose Vessel
Offshore surveillance (fishing pollution, traffic, immigration, etc.) maritime services, crane capacities, towing, firefighting, mooring, load and personnel transport.
Reduced carbon footprint
Eco-conception: Aluminum manufacturing, (98% recycled aluminum), strength and durability.
Patented Depollution Technology
Dual flow technology, allows for the clear water evacuation and the storage of waters polluted by hydrocarbons/ oils.
All Kinds of Pollution
Collection of solid waste (including plastics), collection of liquid waste (hydrocarbons, sewage release, black & gray water in option), jellyfish & plants (weedcutter option).
Low operation cost and efficiency
Quick response: Less than 2 minute. Arms deployment, opening front door, suction and macro wastes basket.
Crew’s safety: Hydraulic control from the cabin by 1 person.

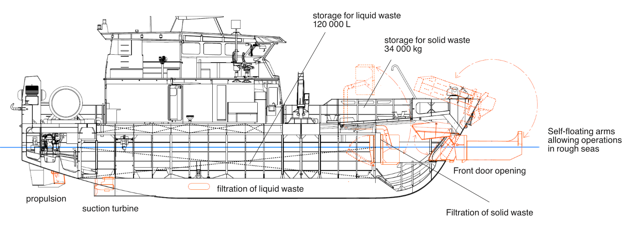

Integrated Cleaning System
Liquid waste recovery: Internal floating storage. Incomparable storage capacity. No variation for trim and draft. No impact on stability.
Solid waste recovery: Automatic filtration and recovery on the deck.
Self-floating arms: System allowing to follow the movement of the waves independently from the motion of the vessel.
Suction in movement: Permanent suction moving forward.
