EFINOR – WasteCleaner 66
VJ Engineering is the Authorized Agent of EFINOR for the country of Malaysia, Singapore & Brunei.
The WasteCleaner 66 is a clean-up vessel with a unique and innovative technology for collecting solid and liquid floating waste including hydrocarbons.
Effective Depollution
Plastic and others floating waste, hydrocarbons, jellyfish, sewage releases, plants.
Essential Services
Single lifting/craning point, road transport outline.
TECHNICAL SPECIFICATION
CONSTRUCTION
- Material: Aluminium
- Ship Certification: Bureau Veritas
- Regulation: French Flag, Division 222
- Electric Motor: 25 kW, 33kW turbo mode
- Max Speed: 6 knots
- Endurance: 8 hours
- Navigation Category: 4th
- Lifting by a single lifting padeye
DIMENSIONS
- Length of Hull: 5.90m
- Beam of Hull: 2.20m
- Light Weight: 2000 kg
- Draft (Average): 0.6m
- Crew: 1
- Transportable by trailer on the road
CLEANING CAPACITY
- Filtering Capacity: 750 m3/h
- Liquid Storage Tank: 1000L
- Payload on Deck: 700 kg
- Cleaning Speed: 2 knots
- Cleaning Width: 4.10m, macrowaste 3.50m hydrocarbons
Multi Purpose Vessel & Muti Services Ship
Seaport services, dock & pier cleaning black & gray water recovery, freight and passenger transport, fire hose, mooring.
Reduced carbon footprint
100% Electric Motorization, 40 kWh with 8 hours of autonomy.
Eco-conception: Aluminum manufacturing, (98% recycled aluminum), strength and durability.
Patented Depollution Technology
Dual flow technology, allows for the clear water evacuation and the storage of waters polluted by hydrocarbons/ oils.
All Kinds of Pollution
Collection of solid waste (including plastics), collection of liquid waste (hydrocarbons, sewage release, black & gray water in option), jellyfish & plants (weedcutter option).
Easy to deploy
Quick deployment: Less than 30 seconds.
Front door, suction, basket for solid waste.
Crew’s safety: Hydraulic controls & command by a person from from the cabin.
Road transport outline: Transportable by road on a suitable trailer and with a single lifting/craning point to facilitate its handling.

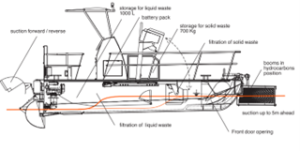

Integrated Cleaning System
Liquid waste collection: Inner ship floating storage built-in, unmatched storage capacity. No change in draft. No impact on stability.
Solid waste collection: Filtration and automatic recovery on the deck.
Suction flow available in static: Between two hulls, under the docks and most inaccessible areas.
Suction while moving: Permanent suction in forward or reverse process.
