EFINOR – WasteCleaner 66E
VJ Engineering is the Authorized Agent of EFINOR for the country of Malaysia, Singapore & Brunei.
The WasteCleaner 66E is a 100% electric clean-up and depollution vessel with unique and innovative technology for the collection of solid and liquid floating waste including hydrocarbons.
Effective Depollution
Plastic and others floating waste, hydrocarbons, jellyfish, sewage releases, plants.
Essential Services
Single lifting/craning point, road transport outline.
TECHNICAL SPECIFICATION
CONSTRUCTION
- Material: Aluminium
- Ship Certification: Bureau Veritas
- Regulation: French Flag, Division 222
- Electric Motor: 25 kW, 33kW turbo mode
- Max Speed: 6 knots
- Endurance: 8 hours
- Battery Pack: 40 kWh
- Navigation Category: 5th
- Lifting by a single lifting padeye
DIMENSIONS
- Length of Hull: 5.90m
- Beam of Hull: 2.20m
- Light Weight: 2000 kg
- Draft (Average): 0.6m
- Crew: 1
- Transportable by trailer on the road
CLEANING CAPACITY
- Filtering Capacity: 750 m3/h
- Liquid Storage Tank: 1000L
- Payload on Deck: 700 kg
- Cleaning Speed: 2 knots
- Cleaning Width: 4.10m, macrowaste 3.50m hydrocarbons
Multi Purpose Vessel & Muti Services Ship
Seaport services, dock & pier cleaning black & gray water recovery, freight and passenger transport, fire hose, mooring.
Reduced carbon footprint
100% Electric Motorization, 40 kWh with 8 hours of autonomy.
Eco-conception: Aluminum manufacturing, (98% recycled aluminum), strength and durability.
Patented Depollution Technology
Dual flow technology, allows for the clear water evacuation and the storage of waters polluted by hydrocarbons/ oils.
All Kinds of Pollution
Collection of solid waste (including plastics), collection of liquid waste (hydrocarbons, sewage release, black & gray water in option), jellyfish & plants (weedcutter option).
Easy to deploy
Quick deployment: Less than 30 seconds.
Front door, suction, basket for solid waste.
Crew’s safety: Hydraulic controls & command by a person from from the cabin.
Road transport outline: Transportable by road on a suitable trailer and with a single lifting/craning point to facilitate its handling.

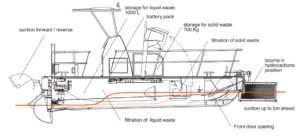

Integrated Cleaning System
Liquid waste collection: Inner ship floating storage built-in, unmatched storage capacity. No change in draft. No impact on stability.
Solid waste collection: Filtration and automatic recovery on the deck.
Suction flow available in static: Between two hulls, under the docks and most inaccessible areas.
Suction while moving: Permanent suction in forward or reverse process.
