TECHNICAL SPECIFICATION

CONSTRUCTION

• Material: Aluminium
• Ship Certification: Bureau Veritas
• Regulation: Division 222
• Engine: 90/250 HP outboard
• Max Speed: 7 / 19 knots
• NavigationNotation: 5 / 4th
• Lifting by a single lifting padeye

DIMENSIONS

• Length of Hull: 7.80m
• Beam of Hull: 2.32m
• Light Weight: 2700 kg
• Draft (Average): 0.8m
• Crew: 1
• Transportable by trailer on the road

CLEANING CAPACITY

• Filtering Capacity: 950 m3/h
• Liquid Storage Tank: 2000L
• Payload on Deck: 800 kg
• Cleaning Speed: 2 knots
• Cleaning Width: 4m
• Motor Pump: 45 m3/h Option

Multi Purpose Vessel

Port service up to 5 miles from shelter, dock/jetty cleaning, mooring load and personnel transport, black & gray water recovery, seaweed cutting machine.

Reduced carbon footprint

Eco-conception: Aluminum manufacturing, (98% recycled aluminum), strength and durability.

Patented Depollution Technology

Dual flow technology, allows for the clear water evacuation and the storage of waters polluted by hydrocarbons/ oils.

All Kinds of Pollution

Collection of solid waste (including plastics), collection of liquid waste (hydrocarbons, sewage release, black & gray water in option), jellyfish & plants (weedcutter option).

Easy to deploy

Quick deployment: Less than 30 seconds.
Front door, suction, basket for solid waste.

Crew’s safety: Hydraulic control from the cabin by 1 person.

Low operation cost and efficiency:  Proven and unmatched performance.

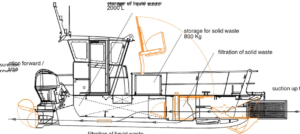

Integrated Cleaning System

Liquid waste recovery:  Internal floating storage. Incomparable storage capacity. No variation for trim and draft. No impact on stability.

Solid waste recovery:  Automatic filtration and recovery on the deck.

Suction at halt, more than 5m ahead: Between two hulls, under the pontoons and most inaccessible areas.

Suction in movement: Permanent suction either moving forward or in reverse.
