Boatspray 100 – Boatspray 200

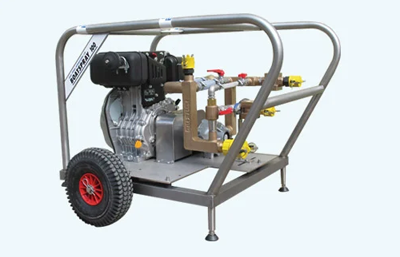

The BOATSPRAY 100 and BOATSPRAY 200 are portable diesel-powered dispersant pump units designed for operation from Tugs, Offshore Support/Supply Vessels, Workboats, and other specialised vessels. They can be used with a variety of application equipment including Spray Arms, AFEDO™ Nozzles, and Hand Lances.

  • BOATSPRAY 100 is the standard model.

  • BOATSPRAY 200 is a large-capacity model for higher output requirements.

Both systems are designed for the application of either concentrated (neat) or diluted dispersant and are available with an extensive range of options. For BOATSPRAY 200, these options can be further configured to meet specific customer and operational requirements at the most cost-effective prices.

Features:

  • Single-cylinder, air cooled direct injection Yanmar diesel engine
  • Fully customisable to required specification
  • Compatible with Spray Arms, AFEDO™ Nozzles and Hand Lances
  • Robust construction in stainless steel with gunmetal and stainless steel pipework
  • Fully variable outlet flow
  • Pressure gauge

Benefits:

  • Reliable and robust pump unit Corrosion resistant
  • Adjustable application rates
  • Neat or dilute spraying up to 30% of total outlet flow
  • Portable, “vessel of opportunity” capability

Technical Specifications:

Model Boatspray 100 Boatspray 200
Motive Unit Diesel Engine with Recoil Start Diesel Engine with Recoil Start
Pump Roller Type Positive Displacement Pump with 100 LPM Output Roller Type Positive Displacement Pump with 200 LPM Output
Pipework Gunmetal Manifolds and Stainless Steel Fittings Gunmetal Manifolds and Stainless Steel Fittings
Eductor Proportioning type (0-20%) Proportioning type (0-20%)
Frame Stainless Steel Stainless Steel
Valves (Manual) 1 No. Eductor Shut Off Valve

1 No. Dispersant Control Valve

1 No. Recirc Flow Control Valve

 1 No. Eductor Shut Off Valve

1 No. Dispersant Control Valve

1 No. Recirc Flow Control Valve
Pressure Relief Valve 0 to 10 Bar 0 to 10 Bar
Pressure Gauge Dual Scale Dual Scale
